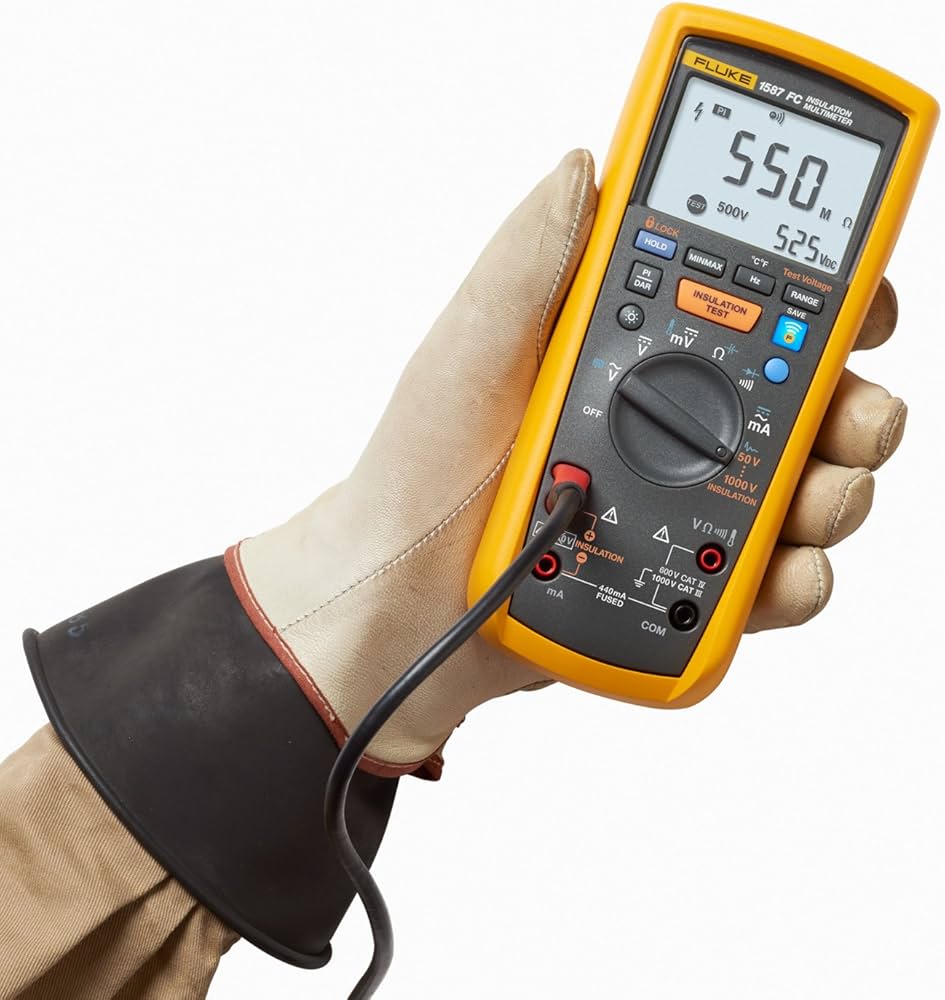

FLUKE 1587 FC

Name: FLUKE 1587 FC
Brand: ALICO INDUSTRIAL EQUIPMENTS
Price: 70000.0 INR
Availability: InStock

Price 70000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Kilograms

FLUKE 1587 FC Specification

Temperature
Operating: -20C to +55C, Storage: -30C to +60C

Display Type
Digital LCD (backlit)

Measuring Range
Insulation resistance, voltage, current, capacitance, frequency

Resolution
0.001

Gas Pressure
-

Interface Type
Wireless (Fluke Connect)

Frequency
45 Hz to 65 Hz

Application
Industrial installation, troubleshooting, maintenance of motors and electrical equipment

Automation Grade
Manual

Max Height
-

Features
Auto-discharge, live circuit detection, remote monitoring, data logging via Fluke Connect

Mounting Type
Handheld

Test Range
Insulation: 0.01 M to 2 G (at up to 1000 V)

Operating Voltage
600 V CAT IV / 1000 V CAT III

Specimen Size
-

Response Time
Instantaneous

Humidity
0% to 95% RH (non-condensing)

Equipment Type
Digital Insulation Multimeter

Accuracy
0.09% + 2 counts (voltage DC)

Port Size
-

Number of Specimens
-

Hardness
-

Power Supply
3 x AA batteries

Usage
Insulation resistance and continuity testing, multimeter functions

Capacity
600 V AC/DC

Machine Weight
550 g

Test Speed
-

Test Width
-

Test Stroke
-

Control Mode
Manual/Auto

Voltage Measurement
Up to 1000 V AC & DC

Insulation Test Voltages
50 V, 100 V, 250 V, 500 V, 1000 V

Data Storage
Yes, with Fluke Connect app

Safety Compliance
IEC 61010-1, IEC 61557

IP Rating
IP40

Continuity Range
0.01 to 20 k

CAT Rating
CAT III 1000 V, CAT IV 600 V

Capacitance
1 nF to 9,999 F

Current Measurement
Up to 400 mA

Size
203 x 100 x 50 mm (H x W x D)

Drop Test
1 meter

FLUKE 1587 FC Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
2 Days

About FLUKE 1587 FC

Key Features

Safety first. Connect the insulation tester then keep yourself out of harm's way by monitoring your test measurements remotely.
Prove your job is done right by quickly seeing and sharing insulation resistance test results wirelessly with your smartphone.
Quickly find problems by saving and comparing measurements over time on a wireless device.

All-in-One Testing Solution

The FLUKE 1587 FC integrates insulation resistance measurement and standard electrical testing in a single, portable device. With selectable insulation test voltages from 50 V up to 1000 V and broad measuring ranges for voltage, current, capacitance, and frequency, it streamlines the diagnostic process for electrical professionals.

Enhanced Safety and Compliance

Engineered with robust safety features and compliant with IEC 61010-1 and IEC 61557 standards, the FLUKE 1587 FC meets CAT IV 600 V and CAT III 1000 V ratings. This ensures reliability and safety during high-voltage and industrial applications, with built-in live circuit detection providing additional operator protection.

Smart Connectivity and Data Management

With built-in Fluke Connect wireless capability, users can remotely record, share, and monitor test data in real time. This minimizes physical presence near active electrical panels, enhances reporting, and simplifies long-term maintenance tracking in demanding conditions.

FAQ's of FLUKE 1587 FC:

Q: How can I use the FLUKE 1587 FC for insulation resistance testing?

A: Select the desired insulation test voltage (50 V, 100 V, 250 V, 500 V, or 1000 V), connect the probes, and press the test button. The meter automatically measures insulation resistance between 0.01 M and 2 G, with results displayed instantly on the LCD.

Q: What benefits does the Fluke Connect app provide with the FLUKE 1587 FC?

A: The Fluke Connect app enables wireless data transfer, remote monitoring, and real-time data logging, allowing you to maintain and share test records effortlessly. This is especially useful for troubleshooting, remote diagnostics, and creating maintenance reports.

Q: Where can I use the FLUKE 1587 FC safely?

A: The instrument is suitable for industrial and commercial environments, rated for CAT IV 600 V and CAT III 1000 V applications. Its rugged build, IP40 rating, and compliance with IEC 61010-1 and IEC 61557 ensure safe operation even in harsh work sites.

Q: What is the process to perform continuity and capacitance tests with this multimeter?

A: Simply select the appropriate mode on the dial, connect the test leads to the circuit, and observe the digital LCD display for accurate readings. The instrument measures continuity from 0.01 to 20 k and capacitance from 1 nF to 9,999 F.

Q: When should I use the insulation test function in maintenance?

A: Use the insulation test function during routine preventive maintenance, after installation of equipment, or when troubleshooting unexpected electrical faults in motors, switchgear, cables, and panel boards to identify insulation breakdowns before they cause downtime.

Q: How does the FLUKE 1587 FC help improve user safety during testing?

A: The instrument incorporates live circuit detection and auto-discharge features to minimize electric shock risk. Its high CAT ratings and compliance with safety standards further safeguard users while working on energized equipment.
