Fluke 369 FC Leakage Current Clamp Meter

Send Inquiry

Request To Call Back

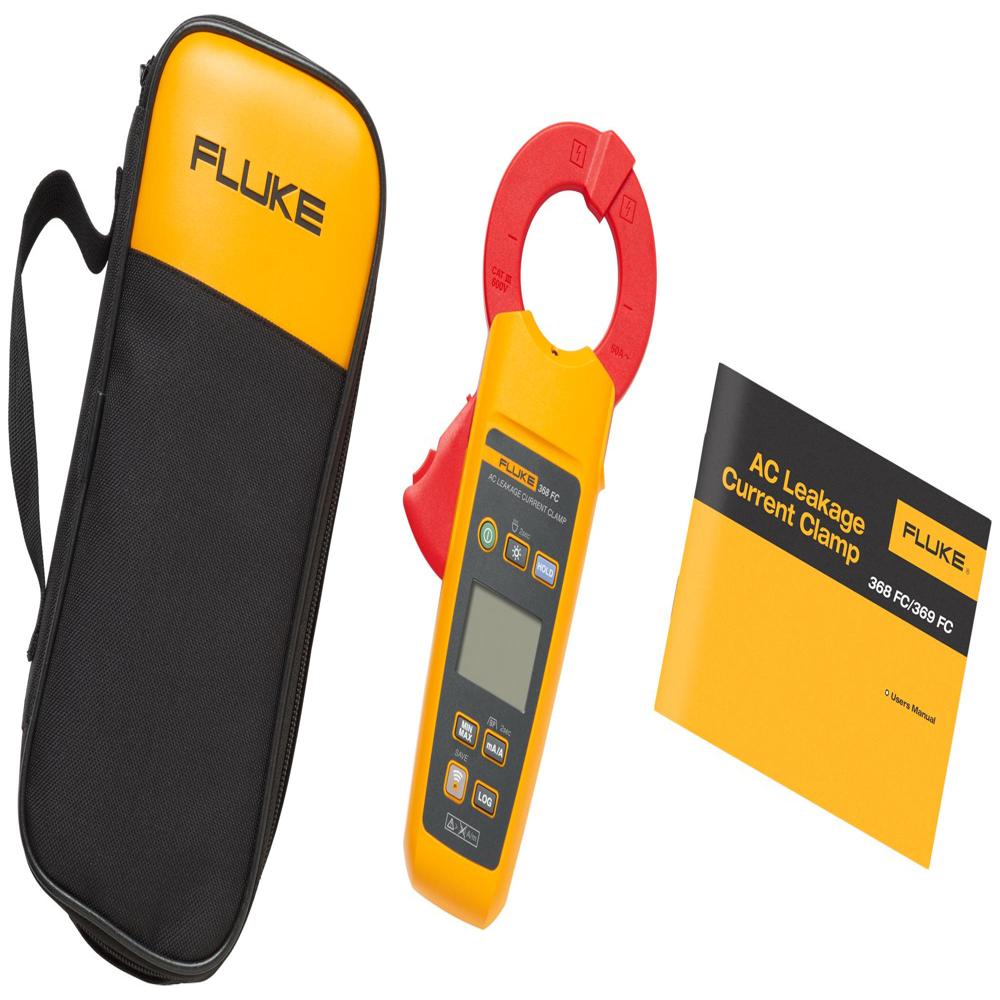

Fluke 369 FC Leakage Current Clamp Meter

Name: Fluke 369 FC Leakage Current Clamp Meter
Brand: ALICO INDUSTRIAL EQUIPMENTS
Price: 80000.0 INR
Availability: InStock

Price 80000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Fluke 369 FC Leakage Current Clamp Meter Specification

Equipment Type
Leakage Current Clamp Meter

Response Time
< 1 second

Display Type
Backlit digital LCD

Temperature
Operating: -10C to 50C; Storage: -40C to 60C

Humidity
Non-condensing, < 85% RH (operating)

Features
Extra-large jaw, wireless data logging, high sensitivity, auto power off, data hold

Frequency
45 Hz to 65 Hz

Mounting Type
Handheld

Application
Measuring leakage current in electrical installations

Measuring Range
1 A to 60 A AC

Accuracy
1% + 5 digits (45 Hz to 65 Hz, > 5 mA)

Automation Grade
Manual

Resolution
1 A

Power Supply
2 x AA batteries

Operating Voltage
CAT III 600 V

Max Height
224 mm

Interface Type
Fluke Connect Wireless

Usage
Field testing, Electrical maintenance

Capacity
61 mm jaw opening

Machine Weight
0.31 kg (0.68 lb)

Control Mode
Manual

Battery Life
Up to 150 hours

Storage Humidity
< 85% RH

Jaw Opening
61 mm (2.4 in)

EMC Compliance
IEC 61326-1: Portable

Auto Power Off
Yes (after 15 minutes of inactivity)

Display Hold
Yes

Data Logging
Yes, via Fluke Connect

Drop Test
1 meter

Dimensions (HxWxD)
224 mm 79 mm 43 mm

Safety Rating
CAT III 600 V, pollution degree 2

About Fluke 369 FC Leakage Current Clamp Meter

Key Features

True-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms
61 mm jaw opening
Highest resolution of 1 A, measure up to 60 A
Selectable filter function removes unwanted noise
Max/Min/Average readings and hold function
Forward-facing LED worklight for use in dark wiring cabinets
Backlit display; auto backlight off and auto power off for extended battery life
CAT III 600V safety rating

Enhanced Measurement Precision

Benefit from high accuracy when identifying leakage currents in sensitive electrical installations. The Fluke 369 FC delivers precise readings (1% + 5 digits) across AC ranges, making it indispensable for maintenance and troubleshooting tasks.

Seamless Wireless Data Logging

The built-in Fluke Connect wireless interface allows for instant data transfer and remote monitoring. Easily log and share measurements with your team through the Fluke Connect app, boosting workflow efficiency and reducing manual errors.

Durable Design for Field Conditions

Engineered for portability and resilience, the Fluke 369 FC features a rugged body, a 1-meter drop-test rating, and long battery life. Its compact form makes it convenient for use in tight spaces or on-the-go diagnostics.

FAQ's of Fluke 369 FC Leakage Current Clamp Meter:

Q: How do I use the Fluke 369 FC to measure leakage current?

A: Simply clamp the extra-large jaws around the desired conductor, power on the device, and view leakage current readings instantly on the backlit LCD. Use the data hold function to freeze results for easy note-taking or wireless logging.

Q: What is the process for logging data wirelessly with this clamp meter?

A: After taking measurements, you can utilize the Fluke Connect wireless interface to transfer data to your mobile device. This enables efficient tracking, storage, and sharing of measurement records without manual copying.

Q: When should I opt for the Fluke 369 FC in my electrical maintenance routine?

A: This meter is ideal whenever you need to accurately detect and record leakage currents, especially in sensitive installations where safety and compliance are critical. Its high sensitivity makes it suitable for regular field testing and preventative maintenance.

Q: Where can the Fluke 369 FC be used effectively?

A: The meter is designed for use in various environments, such as commercial buildings, industrial plants, and field locations-anywhere electrical maintenance or automated leakage current detection is required.

Q: What are the benefits of the extra-large 61mm jaw opening?

A: The 61 mm (2.4 in) jaw can accommodate larger conductors or multiple cables, increasing versatility and making it easier to measure in panels or busbars without disconnecting wiring.

Q: How does the auto power-off feature benefit users?

A: The automatic power-off ensures energy conservation by switching off the device after 15 minutes of inactivity, extending battery life to a maximum of 150 hours and reducing the need for frequent battery changes.
