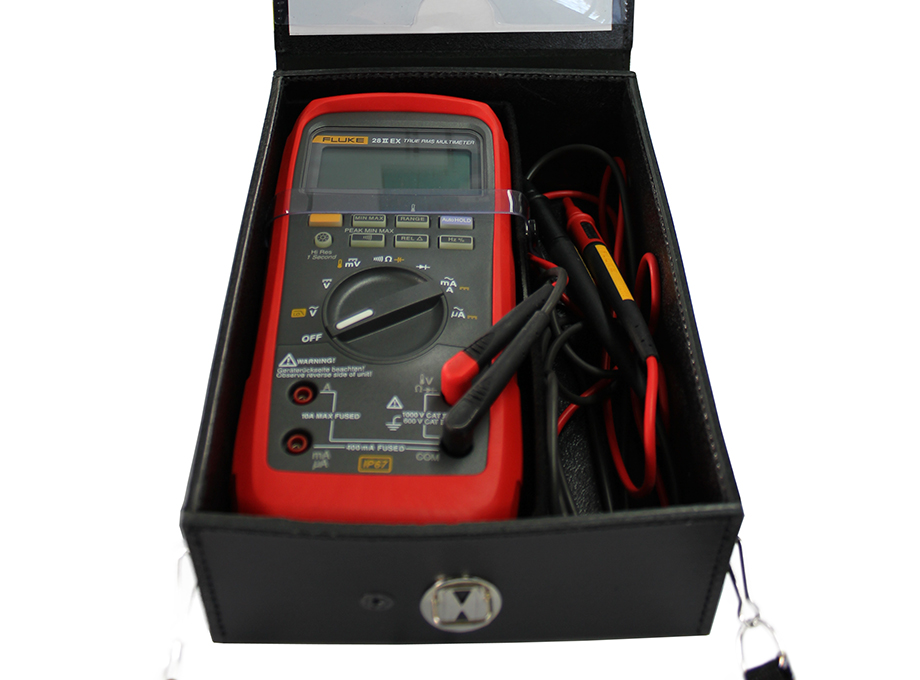

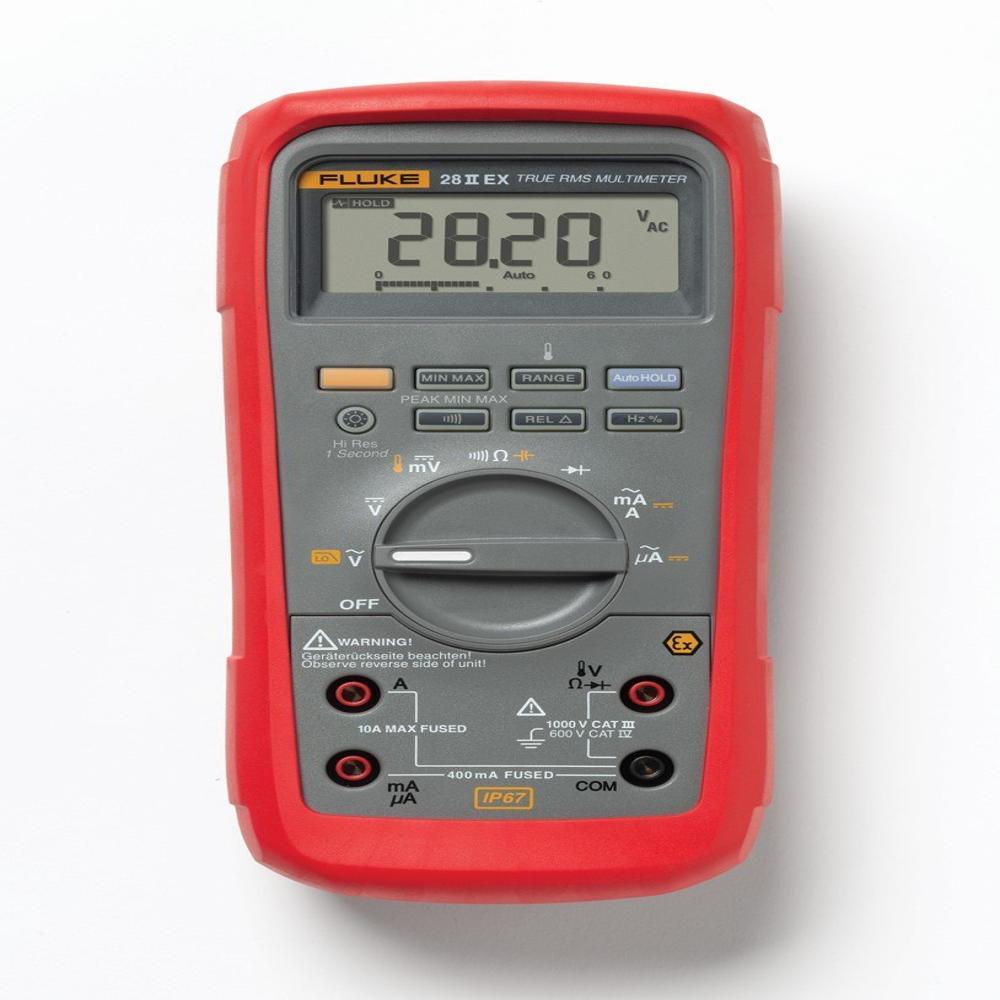

FLUKE 28-11 EX MULTIMETER

Name: FLUKE 28-11 EX MULTIMETER
Brand: ALICO INDUSTRIAL EQUIPMENTS
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FLUKE 28-11 EX MULTIMETER Specification

Measuring Range
DCV: up to 1000V, ACV: up to 1000V, Current: up to 10A, Resistance: up to 50 M, Capacitance: up to 9999 F, Frequency: up to 199.99 kHz

Max Height
63 mm

Test Range
DC Voltage: 0.1 mV to 1000 V, AC Voltage: 0.1 mV to 1000 V, DC Current: 0.01 A to 10 A, AC Current: 0.01 A to 10 A

Frequency
Up to 199.99 kHz

Mounting Type
Handheld

Response Time
Instantaneous (digital display)

Resolution
Up to 0.01 mV / 0.01 A

Equipment Type
Digital Multimeter (Intrinsically Safe)

Port Size
Standard 4 mm input jacks

Power Supply
AA batteries, 3 units (6V total)

Display Type
Large dual digital LCD with backlight

Humidity
0-95% humidity (non-condensing)

Automation Grade
Manual

Temperature
Operating: -15C to +55C, Storage: -40C to +60C

Operating Voltage
1000 V Max (input)

Accuracy
+/- 0.05% (best)

Features
IP67 rated, dustproof, waterproof, drop-proof, True RMS, Intrinsically Safe (ATEX/IECEx certified), Data hold, Min/Max/Avg, Auto and manual ranging, Backlit buttons for low light operation

Application
Electrical measurements in hazardous environments (EX zones), industrial troubleshooting

Interface Type
Standard test leads (detachable)

Usage
Industrial, hazardous environments, field service, mining, petrochemical

Capacity
10 Amps (fused)

Machine Weight
650 g

Control Mode
Manual and Auto

Backlight
Yes, for display and buttons

Diode Test
Yes

Safety Rating
ATEX II 2 G Ex ia IIC T4 Gb, IECEx Ex ia IIC T4 Gb

Battery Life
Up to 800 hours (without backlight)

Ingress Protection
IP67 (dust and waterproof)

Fuse Protection
High energy fuses for user safety

Dimensions (L x W x H)
200 x 100 x 63 mm

Drop Protection
Tested to withstand 3 meter drop

Continuity Test
Yes, with audible beeper

FLUKE 28-11 EX MULTIMETER Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About FLUKE 28-11 EX MULTIMETER

Key features

A completely sealed, IP67 rated case
Withstands drops up to 10 ft or 3 m (with holster)
Dustproof per IEC 60529 IP6x
Waterproof per IEC 60529 IPx7
CAT III 1000 V, CAT IV 600 V
Reversible holster for added protection of the display when not in use

Explosion-Proof Safety for Hazardous Environments

Equipped with ATEX II 2 G Ex ia IIC T4 Gb and IECEx certifications, the FLUKE 28-11 EX Multimeter offers intrinsic safety for electrical measurements in environments exposed to flammable gases, vapors, and dust. The unit is specifically engineered for use in mining, petrochemical, and industrial sectors where safety and compliance are paramount.

Durability Meets Versatility in Industrial Applications

With ingress protection IP67, this multimeter is both dustproof and waterproof, capable of operating reliably in the toughest conditions. Its robust design includes impact resistance from drops of up to 3 meters, ensuring it can handle rugged field and industrial use. The true RMS feature, high-accuracy measurements, and backlit display further enhance its versatility and ease of use.

FAQ's of FLUKE 28-11 EX MULTIMETER:

Q: How is the FLUKE 28-11 EX Multimeter suitable for hazardous environments?

A: The FLUKE 28-11 EX Multimeter is intrinsically safe and certified by ATEX II 2 G Ex ia IIC T4 Gb and IECEx Ex ia IIC T4 Gb standards. This ensures safe operation in environments with explosive gases, vapors, or dust, making it ideal for mining, oil and gas, and petrochemical industries.

Q: What features make this multimeter durable for industrial use?

A: The multimeter is IP67 rated for complete dust and water resistance. It is also designed to withstand drops of up to 3 meters, making it resilient for demanding fieldwork and harsh environments.

Q: When should I use the backlight and backlit buttons?

A: The backlight and illuminated buttons are especially useful when working in low-light or poorly lit areas, ensuring that readings and controls remain clearly visible for safe and efficient operation.

Q: Where can this multimeter be used?

A: It is suitable for use in hazardous zones (Ex zones), industrial troubleshooting, field service, mining operations, and petrochemical plants anywhere electrical measurements need to be performed safely.

Q: What measurement ranges does the FLUKE 28-11 EX support?

A: This model offers a wide range: DC/AC voltage up to 1000 V, current up to 10 A, resistance up to 50 M, capacitance up to 9999 F, and frequency up to 199.99 kHz, with high resolution and 0.05% best accuracy.

Q: How does one benefit from the long battery life and fuse protection?

A: With up to 800 hours of battery life (without backlight) and high-energy fuse protection, users benefit from uninterrupted operation and enhanced safety against electrical faults during demanding industrial measurements.

Q: What is the process for testing continuity and diodes?

A: The FLUKE 28-11 EX offers an audible beeper for continuity testing, making it simple to identify connections, while the diode test function allows for swift assessment of diode integrity, streamlining field diagnostics.
